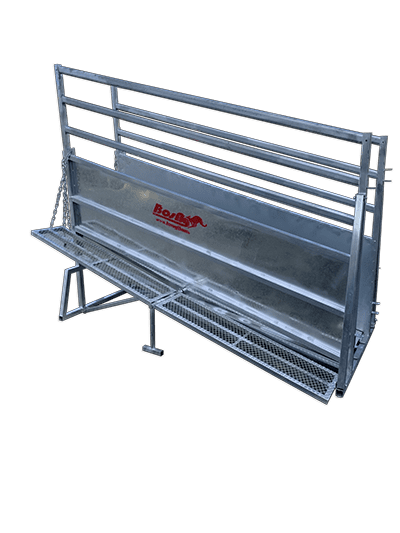

Adjustable Loading ramp with 2 raised walk ways designed to suit all cattle yards.

These adjustable ramp system allows the farmer to move their animals from the cattle yards onto any semi-trailer, truck or ute with minimum risk of injuring beast or person.

Adjustable Loading Ramp Specifications:

50 x 50 x 1.8mm frame
3.0mm Steel sheeting on floor
1mm sheeting on sides
70 x 40 x 1.6mm oval rails x 3 above sheeting height

Overall Dimensions: 3.25m Long x 1.45m Wide x 2.85m High (Race: 0.75m)

The additional walk ways will increase safety & easier single person operation

Each section of the walk way is 1580mm L and 400mm W.

They feature a centre support, adjustable height via a chain and expanded, non-slip mesh treads.

Includes 2 walk ways for each side of the ramp.

$3,202.96 ex GST
$3,523.26 inc GST
Quantity

VisaMastercardAmerican ExpressJCB

Categories: , , , .

Ramp (with double walk way)

Adjustable Loading ramp with 2 raised walk ways designed to suit all cattle yards.

These adjustable ramp system allows the farmer to move their animals from the cattle yards onto any semi-trailer, truck or ute with minimum risk of injuring beast or person.

Adjustable Loading Ramp Specifications:

50 x 50 x 1.8mm frame
3.0mm Steel sheeting on floor
1mm sheeting on sides
70 x 40 x 1.6mm oval rails x 3 above sheeting height

Overall Dimensions: 3.25m Long x 1.45m Wide x 2.85m High (Race: 0.75m)

The additional walk ways will increase safety & easier single person operation

Each section of the walk way is 1580mm L and 400mm W.

They feature a centre support, adjustable height via a chain and expanded, non-slip mesh treads.

Includes 2 walk ways for each side of the ramp.
