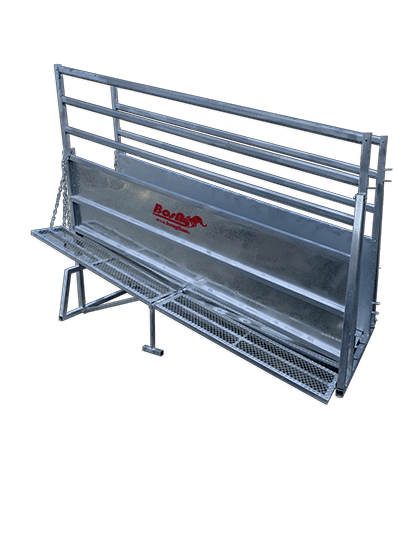

Adjustable Loading Ramp with a raised walk way designed to suit all cattle yards.

These adjustable ramp system allows the farmer to move their animals from the cattle yards onto any semi-trailer, truck or ute with minimum risk of injuring beast or person.

Adjustable Loading Ramp Specifications:

50 x 50 x 1.8mm frame
3.0mm Steel sheeting on floor
1mm sheeting on sides
70 x 40 x 1.6mm oval rails x 3 above sheeting height

Overall Dimensions: 3.25m Long x 1.45m Wide x 2.85m High (Race: 0.75m)

The additional walk way will increase safety & easier single person operation. It can be installed on the left or right hand side of the ramp.

Each section of the walk way is 1580mm L and 400mm W.

They feature a centre support, adjustable height via a chain and expanded non-slip mesh treads.

$2,763.27 ex GST
$3,039.60 inc GST
Quantity

VisaMastercardAmerican ExpressJCB

Categories: , , , .

Ramp (with single walk way)
