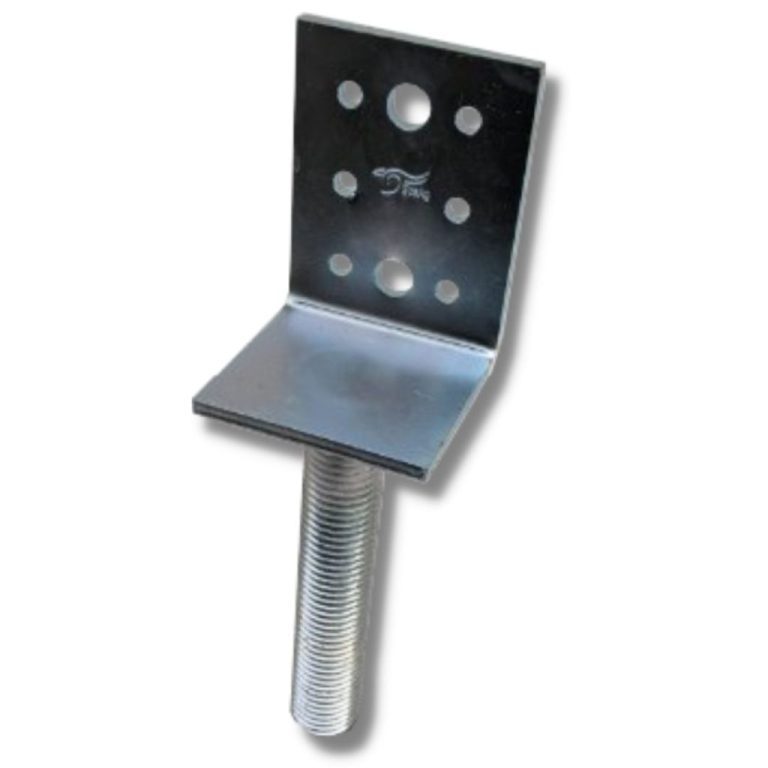

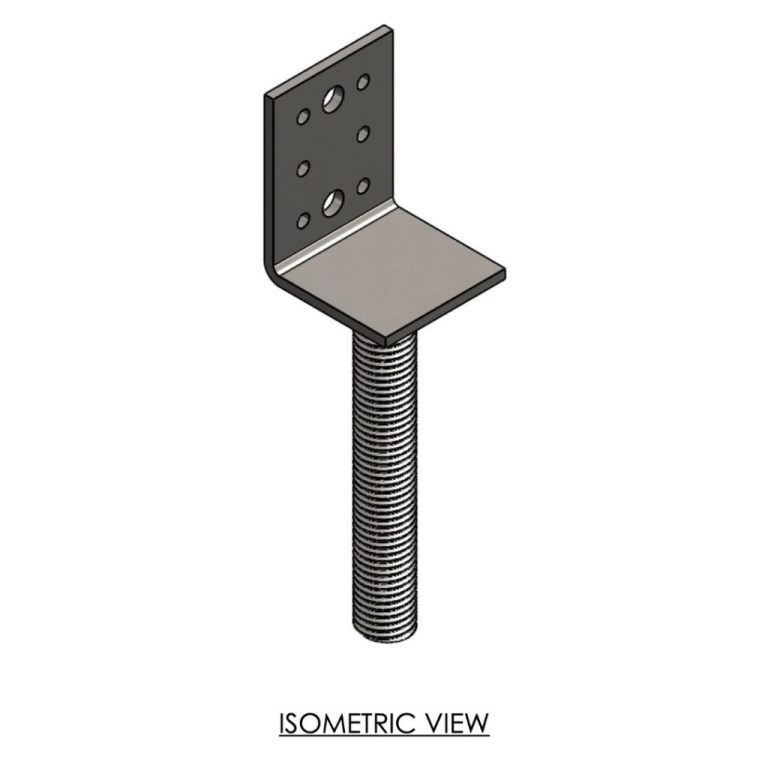

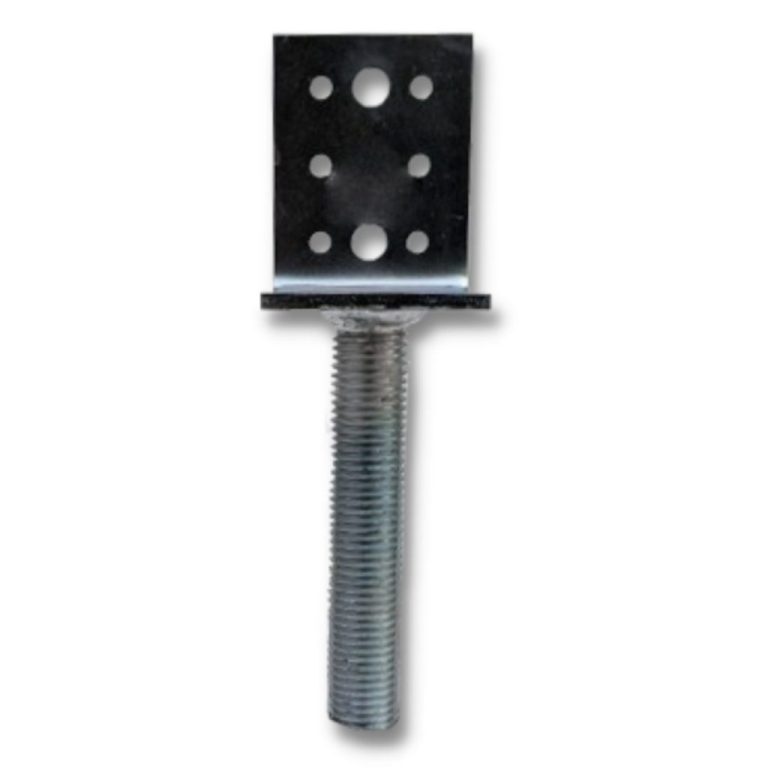

Features a small “L” post plate designed for bolting horizontally through the side of the bearer.

It is an ideal beam support to suit Laminated Veneer Lumber (LVL) construction.

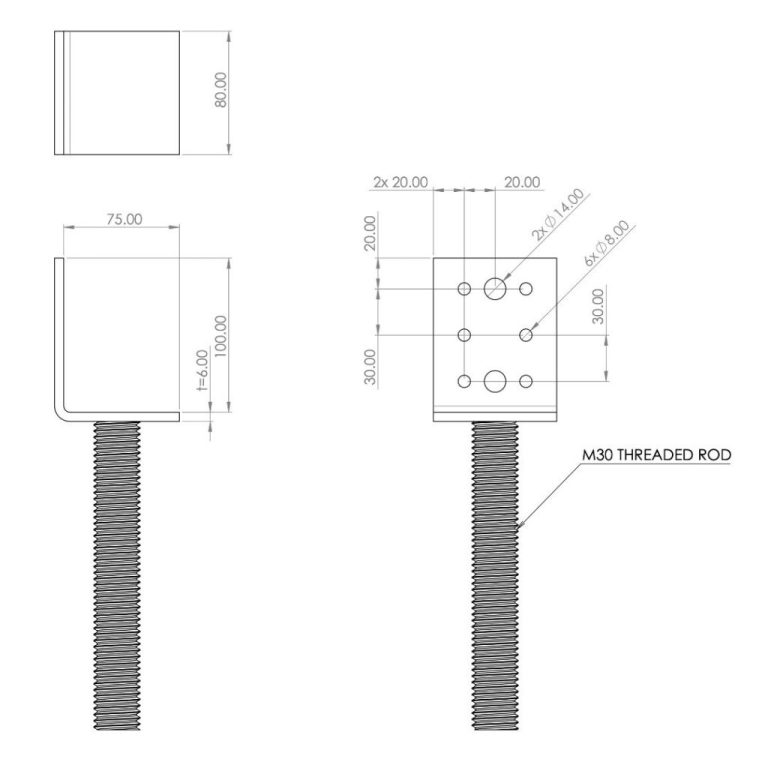

“L” Plate: 100mm H x 75mm L x 80mm W, 6mm thick with 8mm and 14mm Bolt Holes

Threaded Rod Specifications:

Length: 200 mm

Rod metric size: M30

Thread Pitch: 3.5mm

Finish: Blue Zinc

*Will suit any of our M30 Adjustable Stump Plate range

$15.48 ex GST
$17.02 inc GST
Quantity
SKU: PPLS/TR30. Categories: , , .

VisaMastercardAmerican ExpressJCB

Categories: , , .

L Post Plate Small w/TR30 Welded

Features a small “L” post plate designed for bolting horizontally through the side of the bearer.

It is an ideal beam support to suit Laminated Veneer Lumber (LVL) construction.

“L” Plate: 100mm H x 75mm L x 80mm W, 6mm thick with 8mm and 14mm Bolt Holes

Threaded Rod Specifications:

Length: 200 mm

Rod metric size: M30

Thread Pitch: 3.5mm

Finish: Blue Zinc

*Will suit any of our M30 Adjustable Stump Plate range
