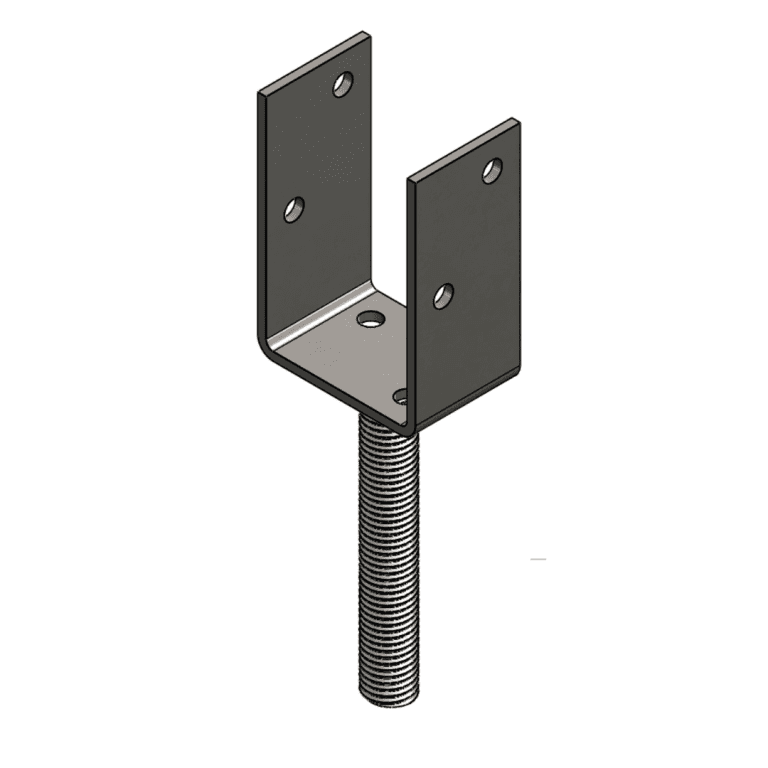

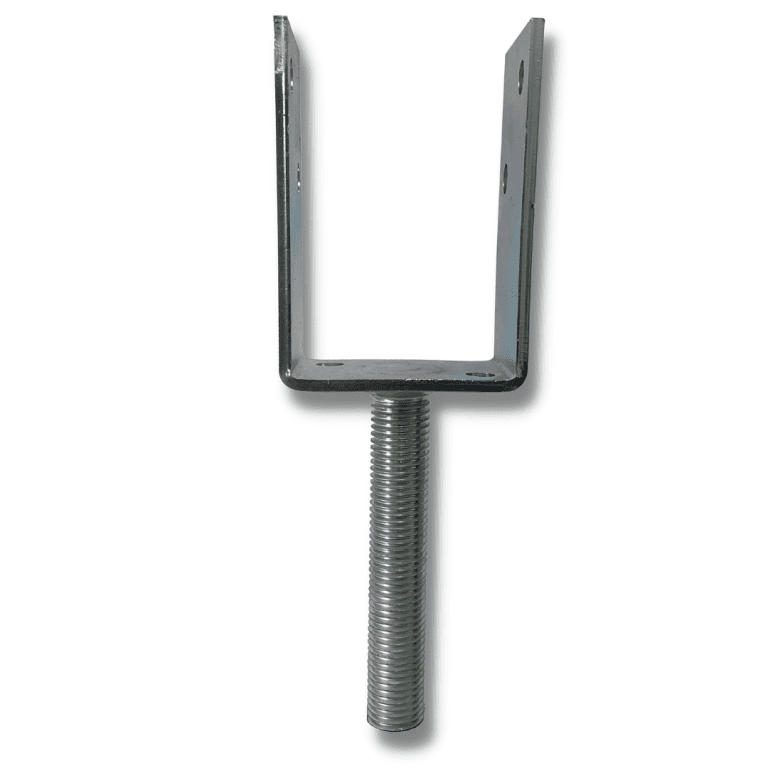

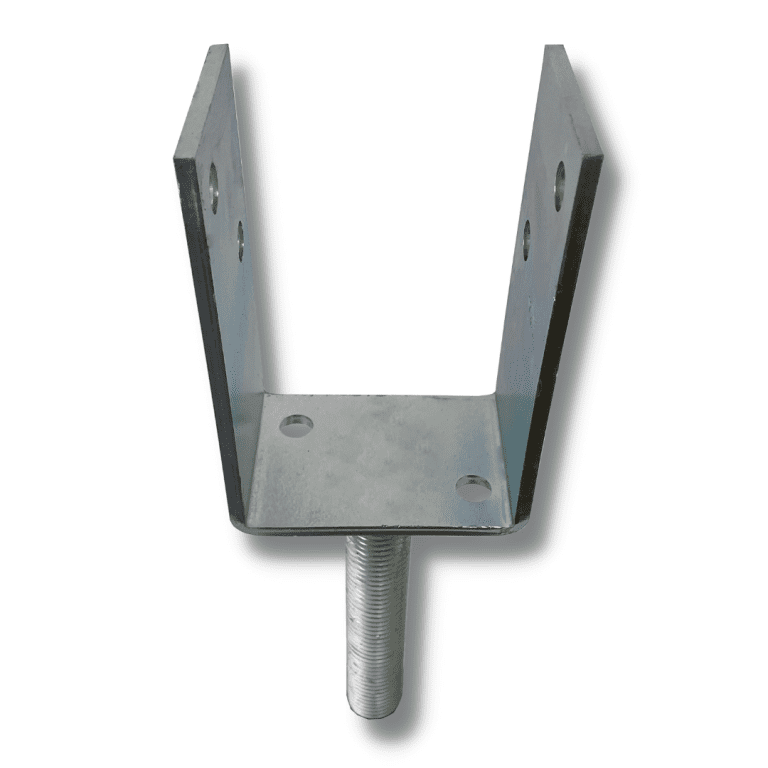

This 100mm U-shaped stirrup is designed to hug each side of a 100mm wide timber bearer and be able to bolt the whole way through without tightening directly onto the bearer.
Ideal to use for steel floor construction with 100mm joists.

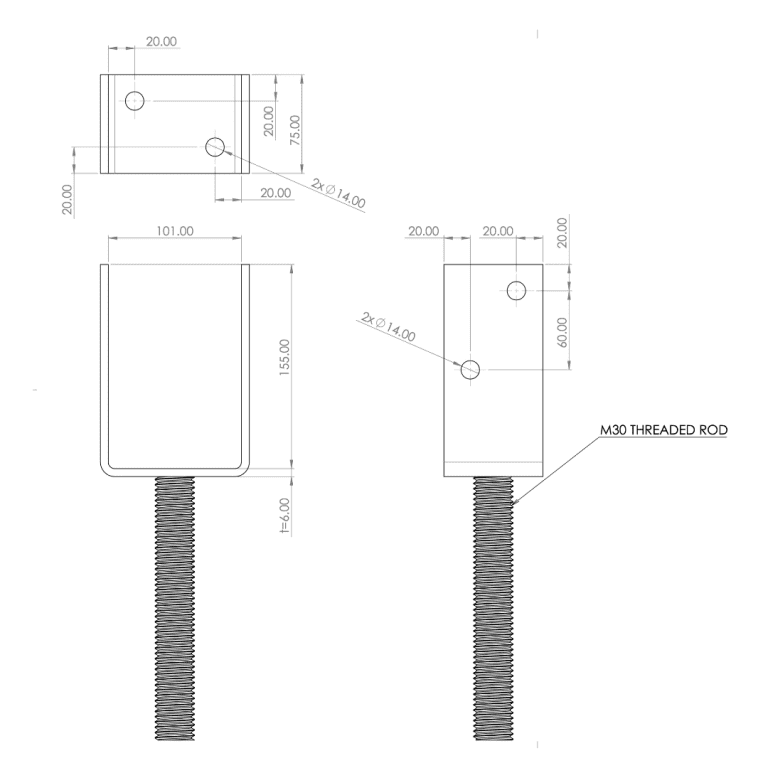

“U” Plate: 155mm H x 101mm L x 75mm W, 6mm thick with 14mm Bolt Holes
Threaded Rod Specifications:
Length: 200 mm
Rod metric size: M30
Thread Pitch: 3.5mm
Finish: Blue Zinc
*Will suit any of our M30 Adjustable Stump Plate range
