Frame material: 50mm x 50mm x 1.8mm

3.0mm thick tread plate steel sheeting on ramp with additional welded steel rungs

Above sheeting height has 3 oval rails: 70 x 40 x 1.6mm

Adjustable Ramp approx. height: 550mm-1600mm.



Thickness of all steel used:

Frame 1.8mm

Side sheeting 1.0mm

Floor sheeting 3.0mm

Oval rails 1.5mm



Overall Product Dimensions (LxWxH): 3.25m x 1.45m x 2.85m

Race Length: 0.75m

*Optional single or double walk ways available

$2,323.56 ex GST
$2,555.92 inc GST
Quantity
SKU: ALR. Categories: , , , .

VisaMastercardAmerican ExpressJCB

Categories: , , , .

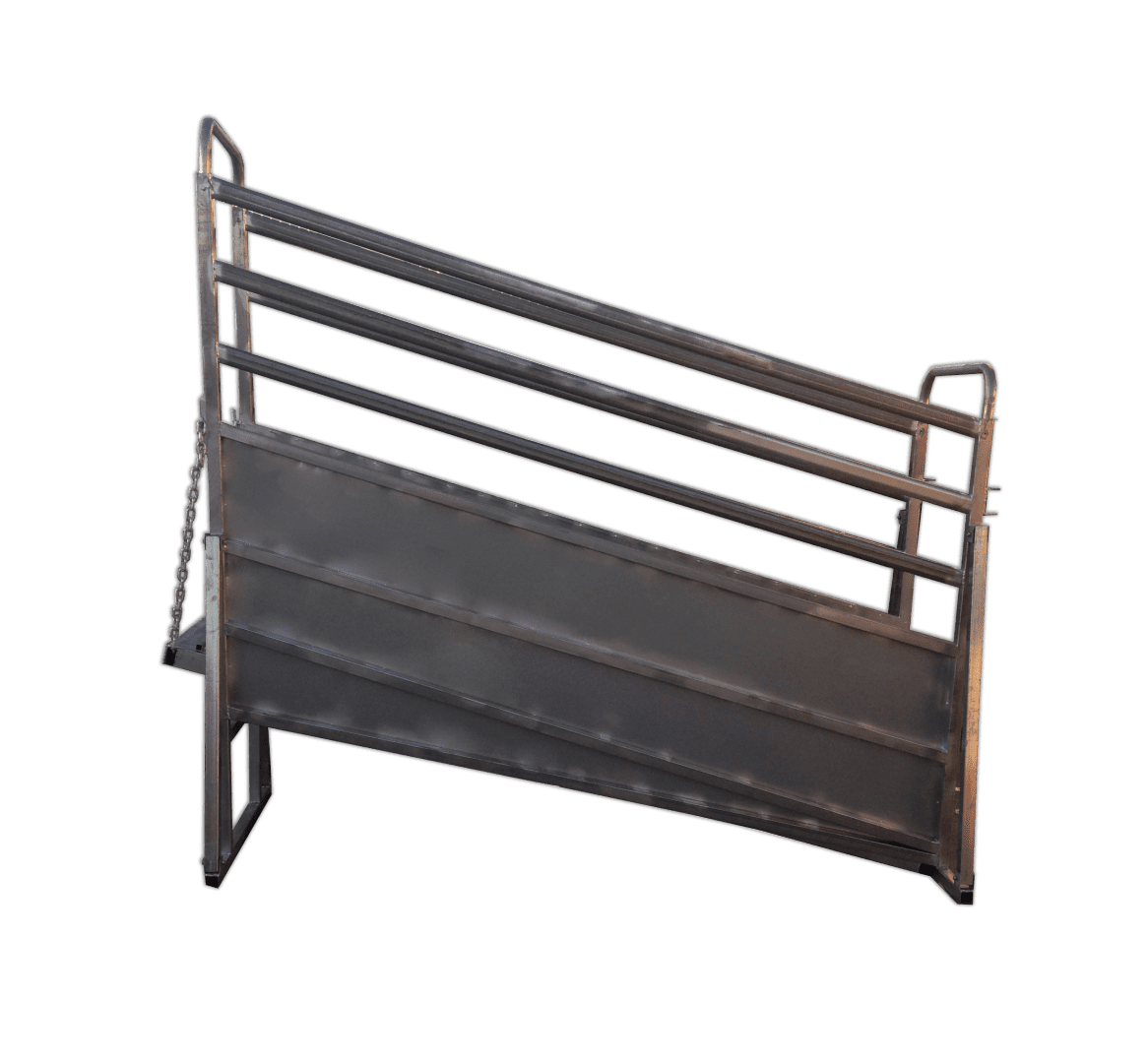

Adjustable Loading Ramp

Frame material: 50mm x 50mm x 1.8mm

3.0mm thick tread plate steel sheeting on ramp with additional welded steel rungs

Above sheeting height has 3 oval rails: 70 x 40 x 1.6mm

Adjustable Ramp approx. height: 550mm-1600mm.



Thickness of all steel used:

Frame 1.8mm

Side sheeting 1.0mm

Floor sheeting 3.0mm

Oval rails 1.5mm



Overall Product Dimensions (LxWxH): 3.25m x 1.45m x 2.85m

Race Length: 0.75m

*Optional single or double walk ways available
